No Warranty & No Support
These brand *NEW* unused overstock units are sold AS IS without support nor a warranty. However they are guaranteed against dead on arrival. Once the unit is placed into service the dead on arrival guarantee is void.
These are not a direct drop in type replacement devices as they will need programming and setup by an expert. If you are not familiar with the programming software then please do not purchase this item. Programming software needed is called DVT and requires a license which is provided and supported by BorgWarner/Sevcon. Only IXXAT (USB-to-CAN) adapters are supported by DVT in particularly the variants with galvanic isolation. The part number is IXXAT USB-to-CAN V2 1.01.0281.12001 and can be purchased here at Digikey for $576 but are sold elsewhere as well.
=== Item Description ===

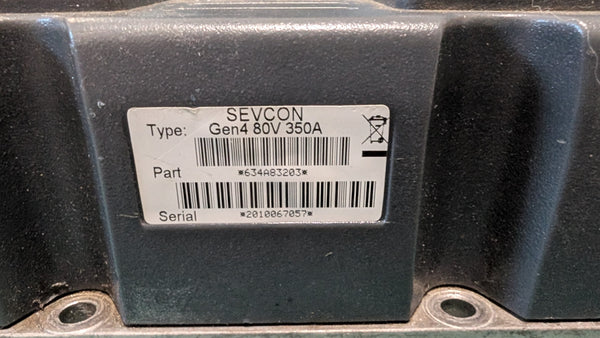

The Gen4 range represents a well established design in compact AC controllers. These reliable controllers are intended for on-road and off-road electric vehicles and feature the smallest size in the industry for their power capacity. Thanks to the high efficiency it is possible to integrate these controllers into very tight spaces without sacrificing performance. The design has been optimized for the lowest possible installed cost while maintaining superior reliability in the most demanding applications.
Specifications
- Advanced control & safety features that are highly configurable
- 72/80V/96V ( 39.1V - 120V ) DC
- 140A 60min. Continuous / 350A 2min. Peak / 420A 10sec. Boost
- IP66
Features
- Advanced Field Oriented Control
- AC Permanent Magnet Synchronous motor control, including salient, non-salient and BLDC motors
- AC induction motor control
- CAN communications bus allows for easy interconnection of controllers and devices such as Battery Management Systems, displays and VCUs
- CANopen protocols
- Configurable as a vehicle control master or as a motor control slave
- Autocheck system diagnostic
- Hardware & software fail safe watchdog operation
- Integrated fuse holder
- IP66 protection
- Highly configurable
Integrated I/O
Gen4 includes a fully-integrated set of inputs and outputs (I/0) designed to handle a wide range of vehicle requirements. This eliminate the need for additional external I/O modules or vehicle controllers and connectors.
- 8 digital inputs
- 2 analogue inputs (can be configured as digital)
- 3 contactor/solenoid outputs
- 1 encoder supply output ? programmable 5 V or 10 V
- Motor temperature sensor input
- Motor encoders supported include U/V/W hall effect sensors, Sin/Cos sensors and incremental A/B encoders
